Solid provides high quality Pressure Control Equipment in support of its wireline servicing operations.
Solid's PCE equipment covers most work requirements in terms of internal diameter and working pressure (3" x 350bar, 3" x 700bar, 4 ¹⁄₁₆″ x 700bar):
• Sealing equipment:
Stuffing Box - seal with packing up to 0.160" wire, for max 400bar working pressure
Liquid Seal Control Head - seal with packing and grease injection up to 0.160" wire, for 700bar working pressure
Grease Injection Head - grease injection seal under pressure for ⁷⁄₃₂″ braided line or e-line cable, for 700bar working pressure

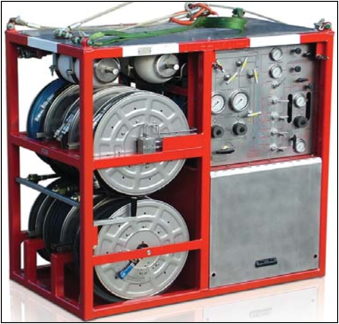

Auxiliary equipment for Liquid Seal Control Head and Grease Injection Head: Hydraulic Control Module & Grease Injection Pump (3k - 15k psi)
• Oiler/Chemichal Injection Sub
• Lubricator: 3" x 350bar, 3" x 700bar, 4 ¹⁄₁₆″ x 700bar - min 60ft each
• Quick Test Sub: 3" x 350bar, 3" x 700bar, 4 ¹⁄₁₆″ x 700bar

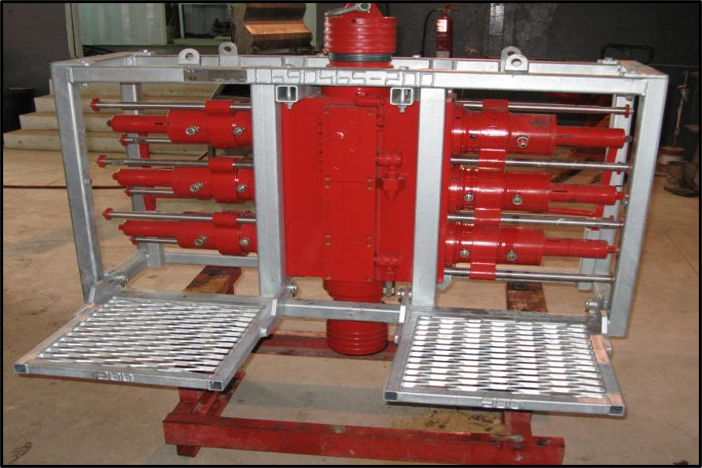

• Blow Out Preventer: 3" x 350bar - single ram, 3" x 700bar - double ram, 4 ¹⁄₁₆″ x 700bar - triple ram
• Pump in Sub: 3" x 350bar, 3" x 700bar, 4 ¹⁄₁₆″ x 700bar - side inlet 2.0" x 1502 WECO connection
• Flange Connection: 2 ⁹⁄₁₆″ x 350/700bar, 3 ¹⁄₈″ x 350bar, 3 ¹⁄₁₆″ x 700bar, 4 ¹⁄₁₆″ x 350/700bar
