Realtime Acquisition and Reporting

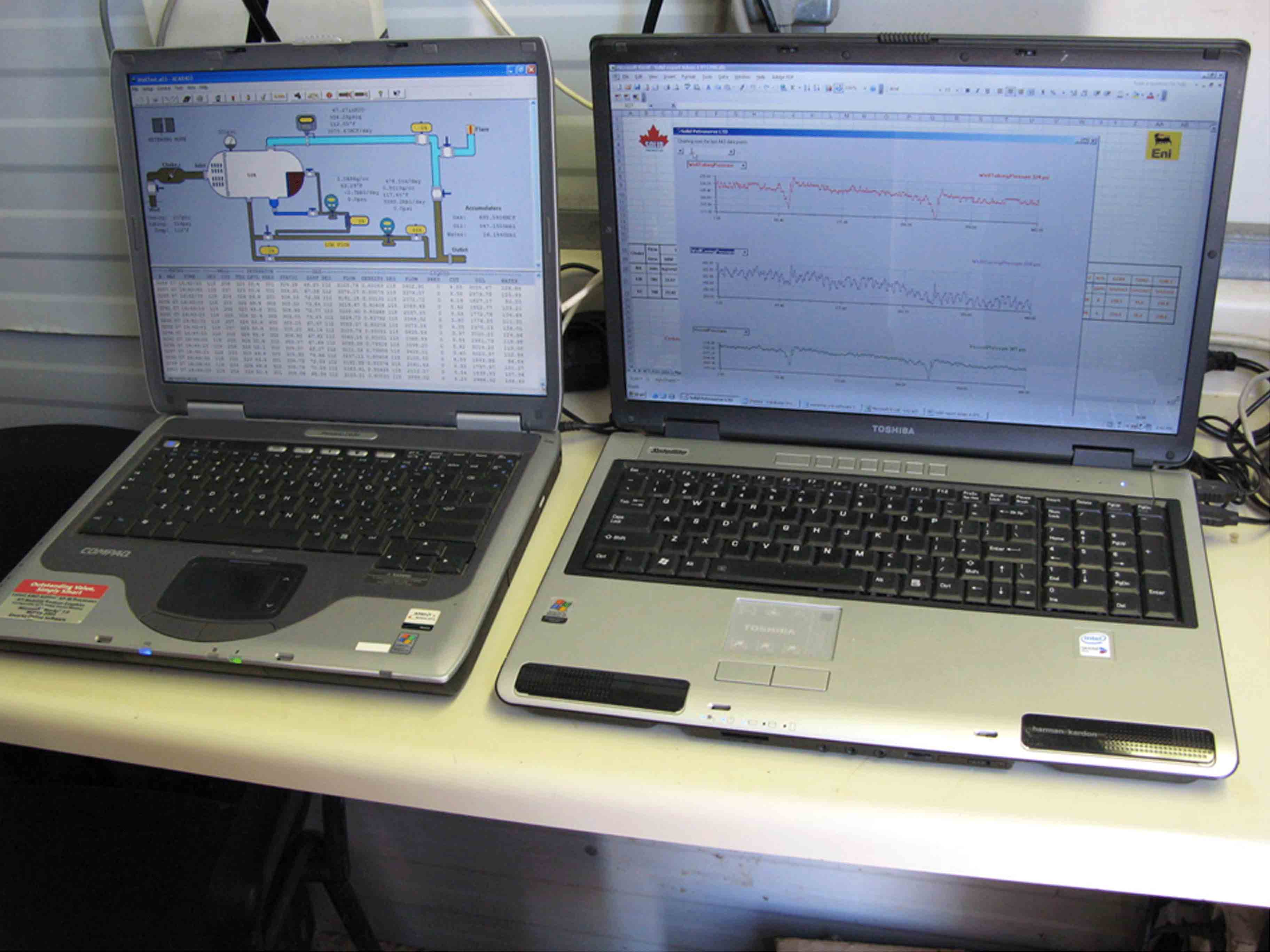

Solid Separator data management design features produce rapid data acquisition and reporting, providing a complete array of pressure, temperature, flowrate and related operating parameters.
• Data Acquisition System: PLC based, Hybrid Analog / Digital Type - SCADA

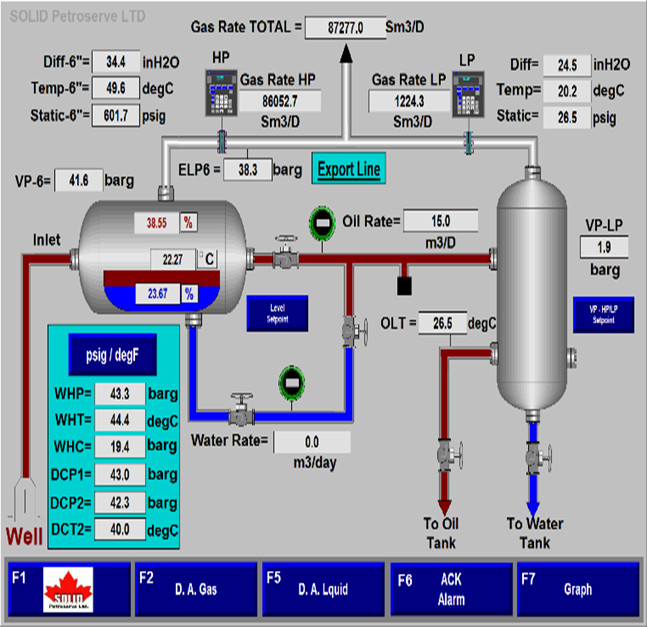

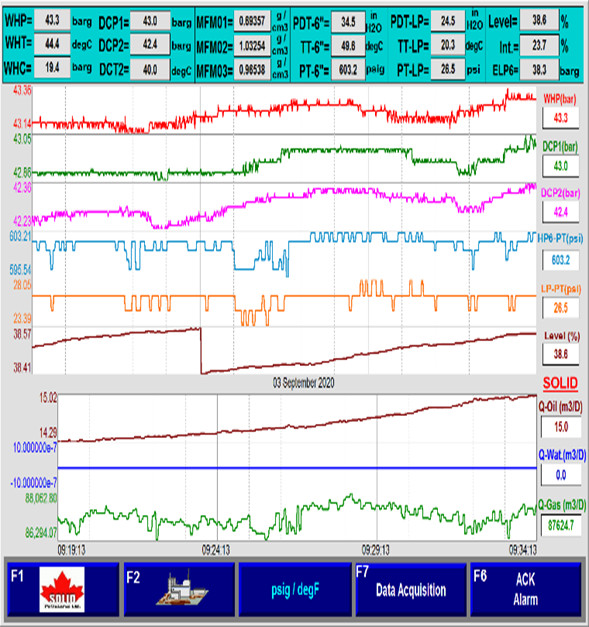

• Well test parameters are continuously recorded and displayed in real time graphics

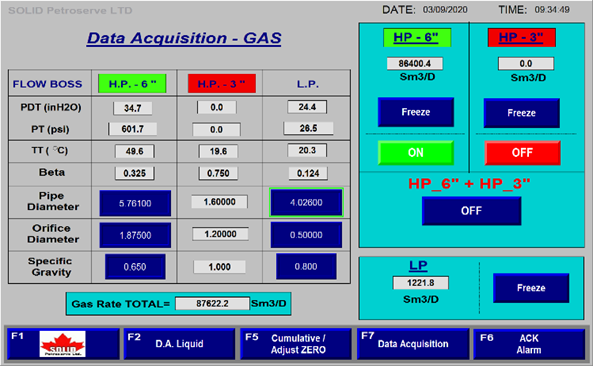

• Records and totalize gas flow rates for both first stage (Gas Rate HP) and second stage separation (Gas Rate LP) using Floboss 107 gas calculator and Daniels orifice meters
• Records and totalize liquid flow rates using Coriolis Mass Flow Meters
• Very stable in all flow conditions and provides continuous output for extended test periods up to several months if necessary
• Includes the emergency shut down system (see the separate data sheet)
• Reports are available in real time in excel and pdf format
• Well test parameters are reported in standard conditions
• Sampling interval for data acquisition is operator selected
